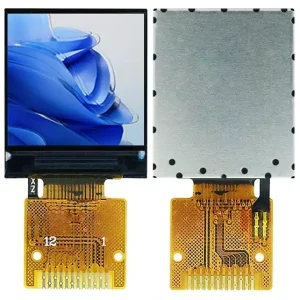

0.85 inch TFT LCD

AT-0085T model is one of the Atemcy TFT displays, which is a full color 128×128 TFT-LCD display module, diagonal size 0.85 inch. This 0.85 inch TFT LCD display supports the SPI and MCU interface.

The 0.85 inch TFT LCD has module dimensions of 17.58×20.82×1.5mm and an Active area size of 15.20×15.20mm; the color is 65K, and brightness is 300 cd/m² and it has IPS/Free Viewing Direction

—————————————————-

Atemcy TFT displays are qualified under industrial standards including

standard TFT-LCD modules

IPS TFT displays

High brightness TFT displays (sunlight-readable display)

TFT panels with controller boards

Bar Type TFT

Wide Temperature TFT LCD

Touch screen displays.

These displays include landscape or portrait modes.

Atemcy has Mono TFT displays and full-color TFTs in line. These displays are available in various resolutions and optionally have touch screens in resistive and projected capacitive (PCAP touch screen) technology.

Many of our TFT display modules have more than one interface available, including MCU, RGB, TTL, LVDS, and MIPI DSI.

Atemcy TFT modules are perfect for many applications, including industrial control, coffee machines, medical equipment, POS systems, automation, GPS navigators, white goods, energy control, telecoms, and medical equipment etc.,
