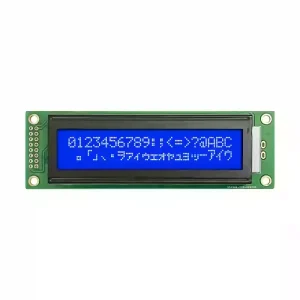

20×2 Character LCD Display Module

Number of Characters:16 Characters x 4 Lines
Module dimension:87.0×60.0x13.6 (MAX)mm
View area:62.0 x 26.0mm
Active area:56.2×20.8mm
Dot size:0.55 x 0.55mm
Dot pitch:0.60 x 0.60mm
Character size:2.95 x 4.75mm
Character pitch:3.55 x 5.35mm
Duty:1/16
Backlight Type: LED

描述
用户评价 (0)

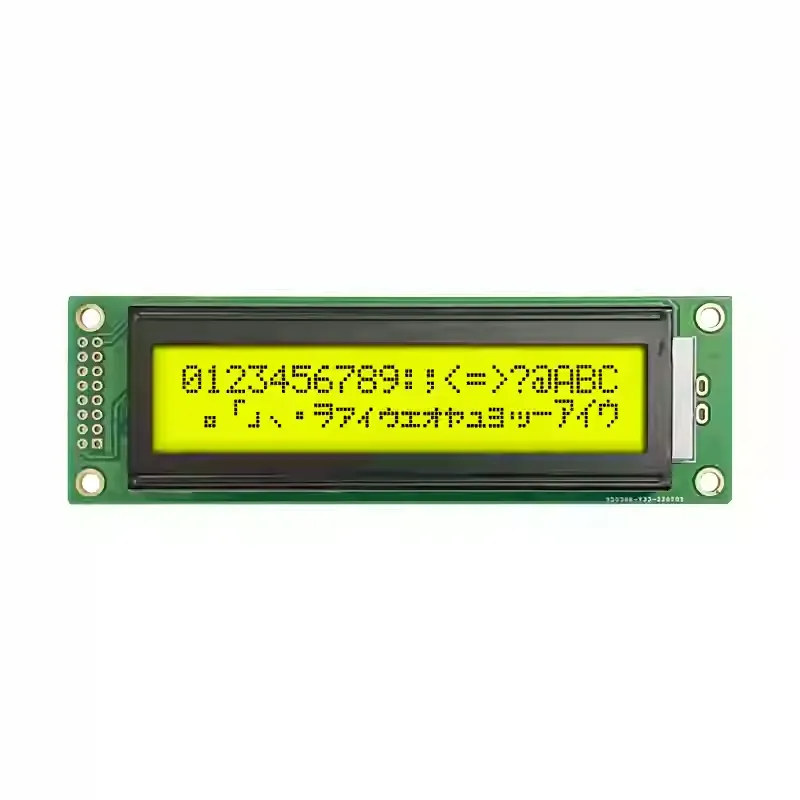

YH2002C-A is the 20×2 Character LCD Display Module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.

These LCD display 20×2 modules are also available in SPI and I2C interface by using RW1063 controller IC. YH2002C-A is available in several different backlight colors including blue, green, white, yellow-green, amber, red and white LEDs.

There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

This module can operate at temperature from -20℃ to + 70℃; its storage temperature ranges from -30℃ to + 80℃.

Atemcy offers a wide range of standard Character LCD modules for customers’ application. Our LCD character displays are available from 8×2, 12×2, 16×1, 16×2, 16×4, 20×2, 20×4, 24×2 through to 40×4 formats with 5×8 dot matrix characters.

The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options.

There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.
