8×2 Character LCD Display Module
Number of Characters:8 Characters x 2 Lines<br />Module dimension:58.0 x 32.0 x 13.2 (MAX) mm<br />View area:38.0 x 16.0mm
Active area:27.81 x 11.5mm
Dot size:0.56 x 0.66mm
Dot pitch:0.60 x 0.70mm
Character size:2.96 x 5.56mm
Character pitch:3.55 x 5.94mm
Duty:1/16
Backlight Type: LED

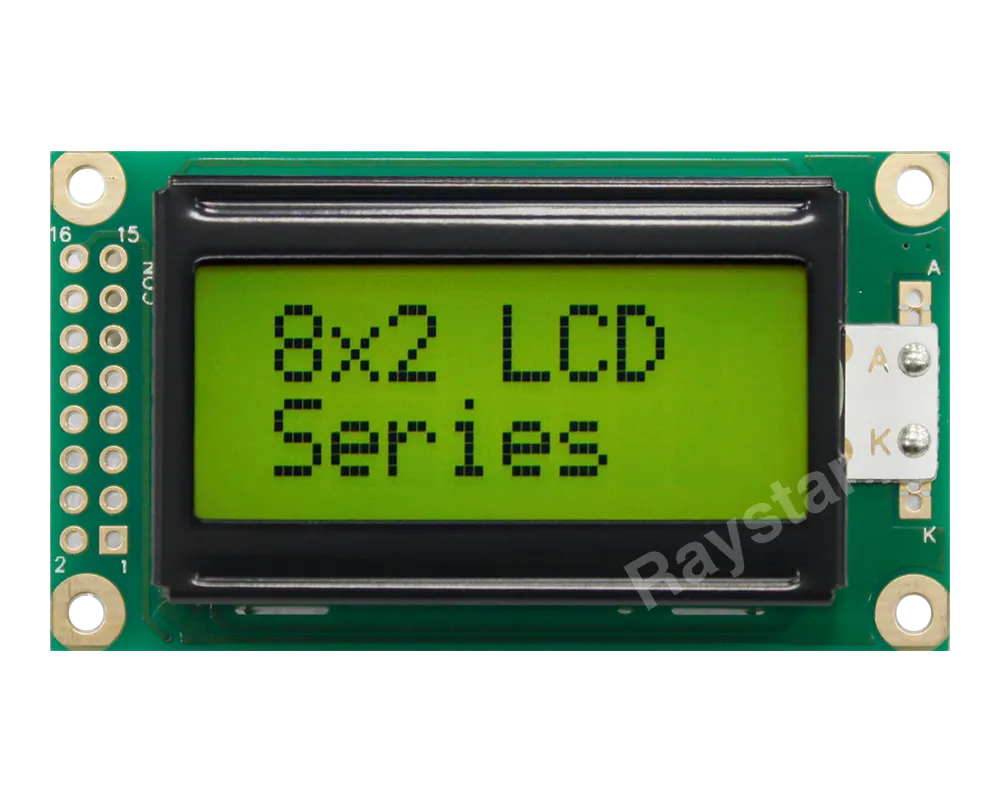

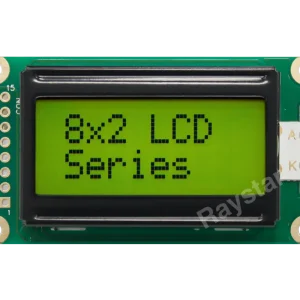

The YH0802C-B is an 8-character by 2-line LCD display module (8×2 Character LCD Display Module) with a module dimension of 58.0 x 32.0 mm and an active area size of 27.81 x 11.5 mm (1.18″ diagonal).
It operates with a 5V power supply, compatible with 3V, while the negative voltage is limited to 3V.
The 8×2 LCD module comes with a PCB board that includes mounting holes, facilitating easy installation in various applications.

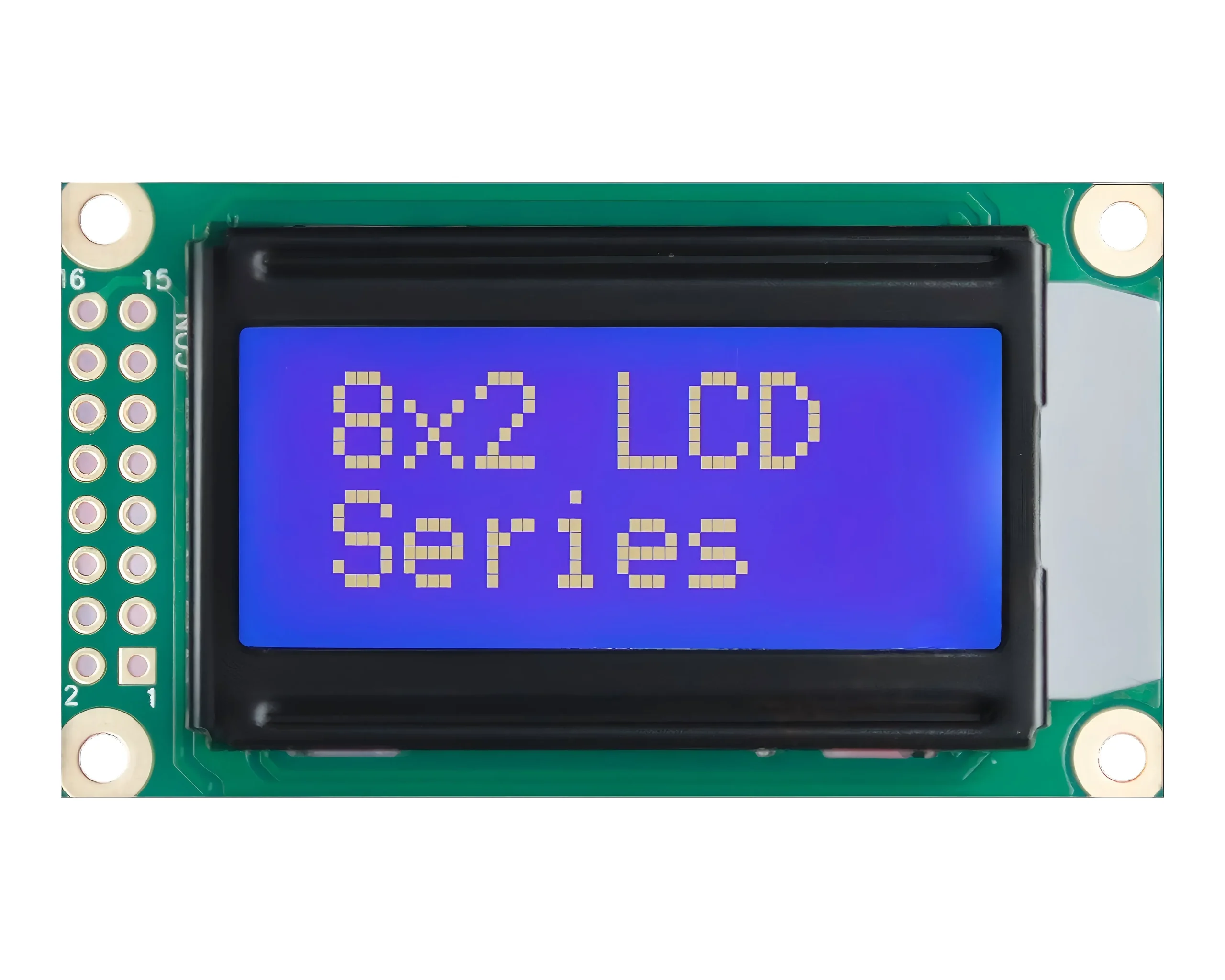

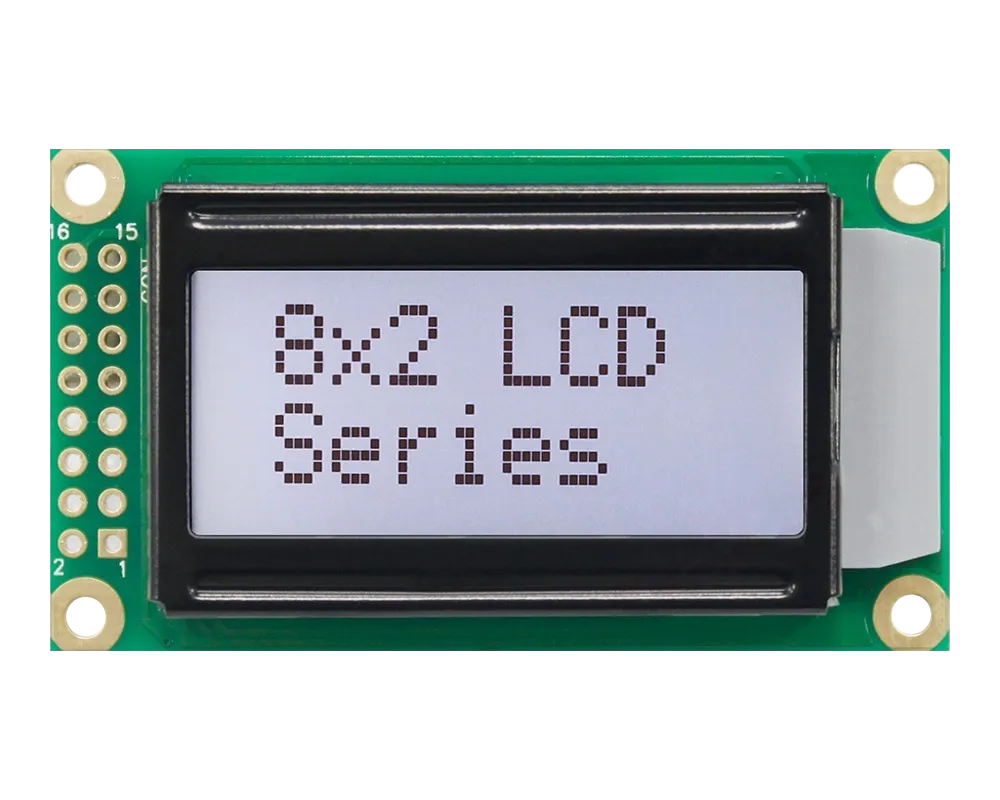

This Module is available with or without LED backlight options and offers various LCD panel colors, including gray, yellow/green, and blue.
The YH0802C-B features the ST7066 controller (or equivalent), which supports different language fonts.
It provides different interfaces, including the default 6800 4/8-bit parallel interface using the ST7066 IC. Additionally, it offers optional SPI and I2C interfaces when using the RW1063 IC.
This 8×2 Character LCD Display Module with an 8×2 display format is well-suited for integration into various small-scale measuring instruments and monitoring devices. Its compact size and ability to provide basic numerical and text displays make it ideal
